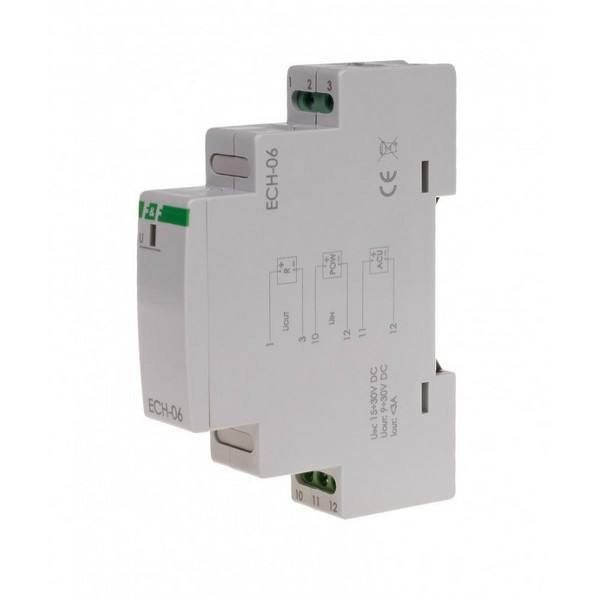

Type power reserve module
Supply / charging voltage Uin 18÷30 V DC
The output voltage Uout (Uin-0,5 V DC / Uacu-0,5 V DC)
Load current of the Uout output 3:00 AM
Battery capacity supported 1,3÷7,2 Ah
Maximum battery voltage 13,8 V DC
Charging current 0,35 A
Power cut-off threshold 10,5 V DC
Own power consumption 1 W
Terminal pluggable terminal blocks 2,5 mm²
Tightening torque 0,4 Nm
Working temperature -10÷40°C
Dimensions 1 module (18 mm)
Assembly on rail 35 mm
Ingress Protection Marking IP20
