Power supply voltage 195÷265 V AC
Maximum AC-1 load current 10 A
Turn-off time 3 s ÷ 9 min. (± 2 min.)
Twilight activation threshold 3÷2000 Lx
Motion detection 0,6÷1,5 m/s

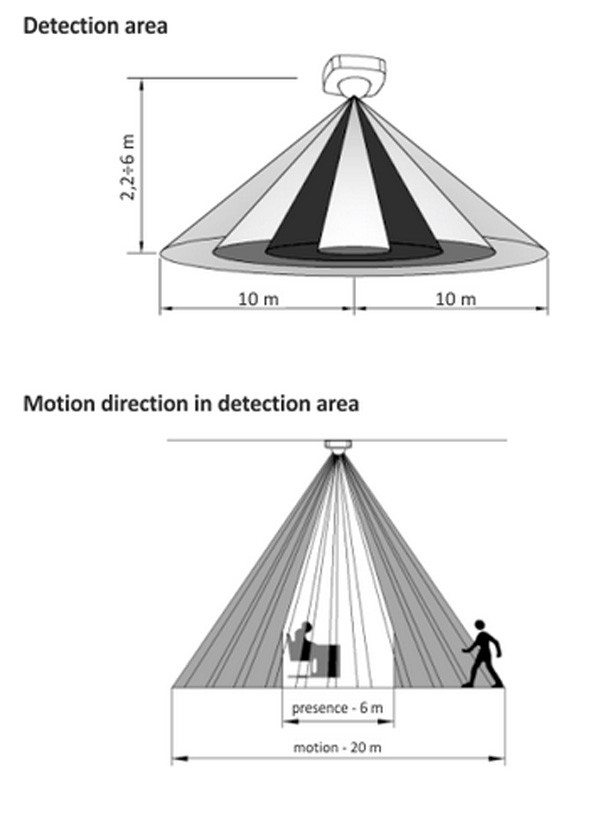

Horizontal detection field 360°
Maximum adjustable detection radius (h: 2.5 m, Temp. 24 10 m
Sensor mounting height 2,0 m ÷ 6,0 m
Type of detection infrared
Terminal zaciski 1,5 mm²
Tightening torque 0,3 Nm
Power consumption 0,5 W
Power consumption waking / working 0,10 W / 0,45 W
Working temperature -20÷40°C

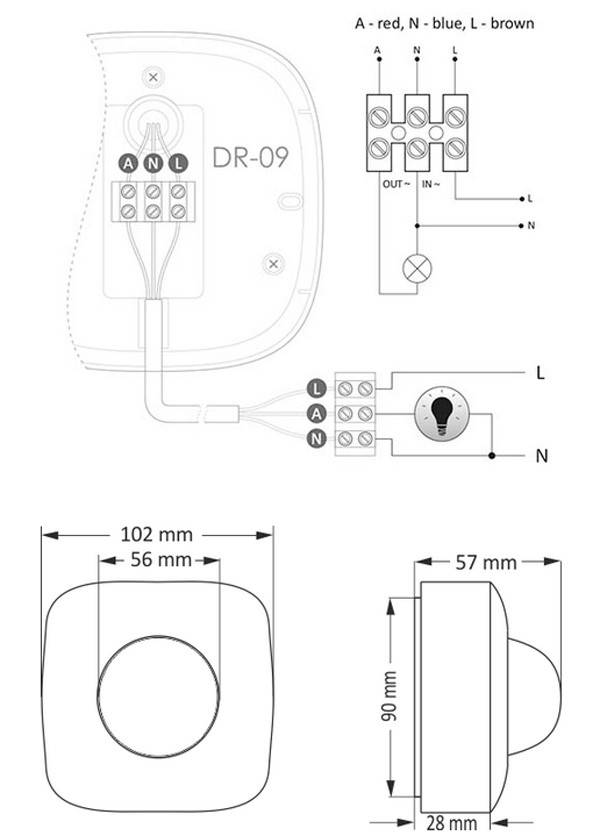

Dimensions 102×102 mm, h: 55 mm
Assembly on wall
Ingress Protection Marking IP65 - hermetic
